AVerVision M70W Mechanical Arm Wireless Visualiser

13MP Document Camera with HDMI, USB and WiFi Connectivity

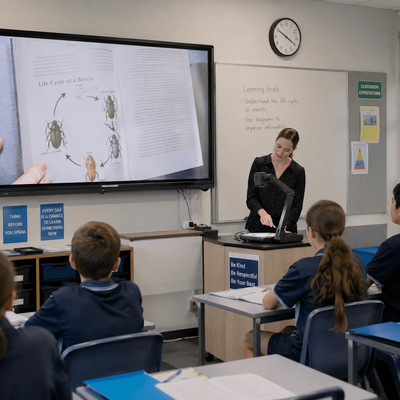

The M70W is a 4K wireless visualiser that transforms eLearning by enhancing interactive discussions between teachers and students. A versatile mechanical arm and solid body support a 13-megapixel camera with vividly detailed 4K, 60fps imaging and powerful 230X total zoom capacity.

230X Total Zoom
Capture every shot with the M70W’s 10X optical zoom plus 23X digital zoom. The power of close-ups enhances the learning experience by letting teachers show every little detail.

Outstanding 4K Video Quality
Embracing 4K Ultra HD output resolution with its 13-megapixel camera, the M70W’s impressively smooth and steady 60fps performance is a delight.

Durable, Adjustable & Portable

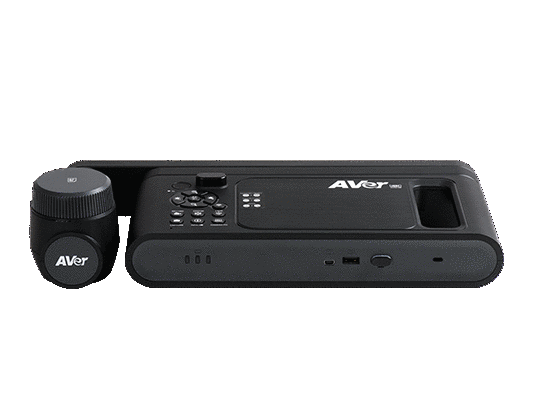

The sturdy, adjustable mechanical arm and portable handle offer users flexibility to apply the M70W in different fields. Additionally, the position indicator on the camera head allows for precise visualising of A3-sized documents.

Wired or Wireless

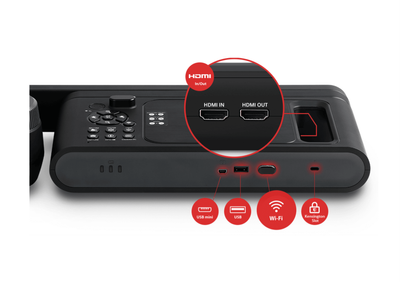

Integrating the benefits of stand-alone and wireless visualisers, the M70W gives teachers options. Armed with HDMI and USB connectivity, idea sharing has never been this easy.

One-Touch Capturing & Recording
Irresistible 4K video recording and capturing functions completely fulfil the needs of flipped teaching. Simply capture all your favourite moments and express your creativity during classes with the M70W.

Specs

Image sensor: 1/3.2" CMOS
Total pixels: 13 megapixels
Frame rate: 60 fps (max.)
Output resolution: 4K / Full HD 1080p 60Hz / HD 720p 60Hz
TV lines: 1400
Zoom: Total 230X max. (10X Optical + 23X Digital Zoom)
Focus: Auto / Manual / Area (via software)
Shooting area: A3 (480 x 345 mm max. at 470 mm)
Image rotation: 0° / 90°(rotate by camera head)
Preview mode: Normal / High Frame / High Quality / Microscope / Infinity / Macro
Effect: Rotate / Freeze
Dual mode: AP / Station DHCP (Server / Client)
Wi-Fi streaming: 1080p 30 fps / up to 4K 30 fps
Dual band: 5 GHz / 2.4 GHz
Miracast: Yes
Compatibility: 802.11a/b/g/n/ac (45 ft effective range)
Wireless security: Support WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise (EAP-PEAP, EAP-TLS)
External storage: Yes, via USB flash drive FAT (32 GB max.)
Image effects: Colour / B&W / Negative
Image adjustments (white balance/exposure): Auto / Manual
One-touch recording: Yes
One-touch capture: Yes
Annotation: Yes, via software
Timer: Yes, via software
Picture-by-picture: Yes, via software
Capture mode: Single, via software (13 MP & based on HDMI resolution)
User profile: 1
Flicker filter control: Yes
ePTZ: Yes, via software
Cloud library: Yes, via software
USB bus power: Yes, standby only
Lamp type: LED light
MIC: Built-in
USB: USB 2.0 Type A (Wi-Fi Dongle)
USB Type mini-B *1

Dimensions (L x W x H): Operating: 587 mm (L) x 159 mm (W) x 546 mm (H)
Folded: 363.5 mm (L) x 159 mm (W) x 76.3 mm (H)

Weight: 2.6 kg (5.7 lbs)
Warranty: Visualizer: 5 years
Battery and accessories: 1 year

Power source: DC 5V/2A
AC 100-240V

Consumption:8.7 Watts (lamp on)
7.7 Watts (lamp off)

Windows® OS: Windows® 7, 10, 11
Mac® OS: macOS® 10.15 or later
iOS: iOS v11 or later (iPad only)
Android™ OS: Android v5.0 or later
Optional accessories: Carrying bag
Anti-glare sheet
Microscope adapter

Package Contents: AVerVision M70W unit
Quick guide
USB cable
Remote control with AAA batteries*2
Power adapter (DC 5V)
Warranty card

AVervision M70W Brochure.pdf
